Automatic Oil Distillation Plant Refinery Machine for Machinary Plastic Convert 2022

Name: Automatic Oil Distillation Plant Refinery Machine for Machinary Plastic Convert 2022
Brand: MINGJIE
Price: 78 USD

Wholesale Automatic Oil Distillation Plant Refinery Machine for Machinary Plastic Convert 2022 from china suppliers

Place of Origin : Henan, China

Brand Name : MINGJIE

Type : distillation machine

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : Reactor, Reactor Casing, Auto carbon discharging screw with water cooling

Tire Machine Type : Tire Recycling Machine

Voltage : 220v 380v

Dimension(L*W*H) : D1400*H4000

Year : 2022

Warranty : 1 Year

Key Selling Points : Sustainable

Power (kW) : 2.2 kW

Weight (KG) : 30000 KG

Applicable Industries : Manufacturing Plant, Energy & Mining

Showroom Location : Philippines, Thailand, South Korea, Malaysia

After-sales Service Provided : Engineers

Raw material : Pyrolysis Oil , Used engineer oil

Certification : CE ISO

Function : Machinary Plastic Convert

Rate of oil yield : 80%

Final product : Diesel

Pressure : Vacuum, negative Pressure

Applicable fuel : Oil, LPG, Nature Gas, Wood, Coal

Name : Distillation Plant

Advantage : Environmental Friendly

Packaging Details : 20 HC ,40 HC, 40 FR CONTAINER
Tyer Recycling Machine Tyre Plastic Recycling to Diesel Plant Distillation Machine

Port : Qingdao

Supply Ability : 10 Set/Sets per Month

Price : $78,000.00/sets 1-2 sets

MOQ : 1 unit

Contact Now

COMPANY INTRODUCTION

Automatic Oil Distillation Plant Refinery Machine for Machinary Plastic Convert 2022

About MINGJIE Machinery

Henan Mingjie Environmental Equipment Co., Ltd is a high-tech environmental enterprise, covering R&D, manufacturing , sales and
exporting, We are committed to provide comprehensive solution for solid waste recycling , specializing in waste tires, waste
plastics, and oil sludge reprocessing equipment, to get fuel oil and other renewable energy. With almost 20 years manufacturing experience, a professional team for foreign trade and after-sale service, we take “ To Create Sustainable Value for Clients “ as pursuit. With abundant experience and foreseeing ability of this industry, All the products from Mingjie have been certified by CE and ISO, have been exported to India, Pakistan, Romania, Jordan , Thailand, Malaysia, and England etc, has very stable clients and good reputation in Chinese
market, Mingjie company will continuously to create value for our clients , strive to be the No.1 in the industry.

PRODUCT DESCRIPTION

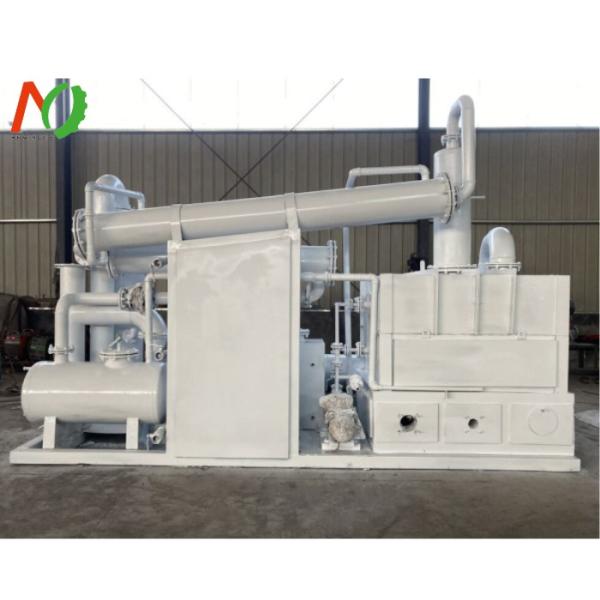

Distillation plant

Distillation system to process pyrolysis oil, used oil into diesel, aim to improve the value of the oil.

* Pyrolysis Oil Distillation Plant
* Used Engine Oil Distillation Plant
* Waste Oil Refining To Diesel Plant

Model	MJZ-2	MJZ-3	MJZ-6	MJZ-10	MJZ-20
Capacity	1-2T/Batch	3T/D	6T/D	10T/D	20T/D
Power Consumption	10kw	15kw	22.5kw	42kw	46kw
Operation	Batch	Batch	Batch	Batch	Batch
Raw material	Used engine oil, pyrolysis oil, used transformer oil, used lubricating oil
Final products	Non-standard diesel, diesel oil, base oil
Oil yield rate	80-85%
Working pressure	Negative
Construction	Vertical type
Cooling method	Water cooling
Fuel for heating	LPG, Diesel, Natural gas

Distillation Working Process Description

1. Pump the pyrolysis oil into the distillation reactor. 2. Heat the reactor and pyrolysis oil will become the oil gas.Light Oil gas will go to the light fraction condenser and be liquefied to oil and stored in the light oil tank. 3. Pump light oil from the tank to the pickling tank. pickling tank add the concentrated sulfuric acid which can remove the sulfide and colloid in the oil. 4. After pickling washing,pump the oil into the alkaline washing tank for neutralization and remove the oxygenated chemicals sulfide.It use the sodium hydroxide as the chemical here.

5. After alkaline washing,pump the oil into the activated clay tank for adsorption the solid impurities, here use the activate clay as chemical Meantime the boiler provide the heat for this process. 6. After activated clay adsorption process. pump the oil and go through the plate-and-frame filter press to get the final clean and transparent non standard diesel. 7. The uncondensed syngas will be out from the light oil tank and be purified and cleaned in the hydroseal, after that one part will be recycled as fuel for the reactor heating, another extra syngas will be burned out directly for release the pressure. 8. The remain of heavy oil fraction will be pumped out after distillation process and go through the heavy oi condenser and stored in the heavy oil tank. 9. Emission will come out from furnace and go through the flue condenser for cool down the temperature.After that to through the dedusting scrubber for cleaning by water washing ceramic ring adsorption and water spray then the emission can be discharged into the air.

10.The water pool keep providing the cool water for the oil condenser and flue condenser. The cooling tower cool down the temperature of the hot water from the condensers.

Final product

Non-standard diesel

1. Be used on low speed heavy-duty diesel engine, such as large agricultural machine, mining machine, ship, power generator, etc.; 2. Be used on the automobile engine by mixing with standard diesel (3:1); 3. Be used as fuel for heating; 4. Compared with the standard diesel, the end oil has a higher sulfur content, and lower flash point.

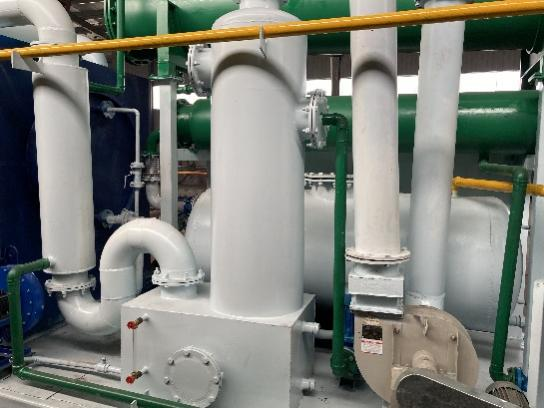

PRODUCT CONFIGURATION

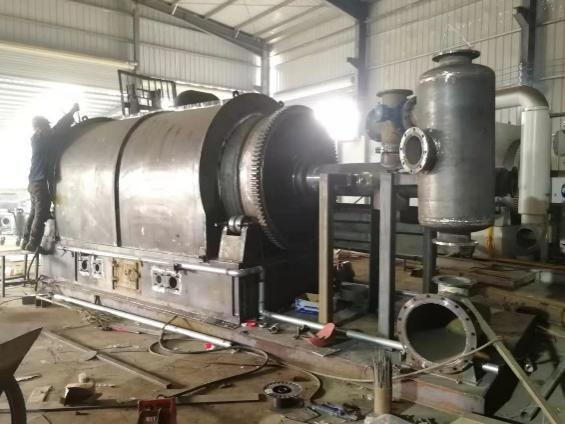

Reactor

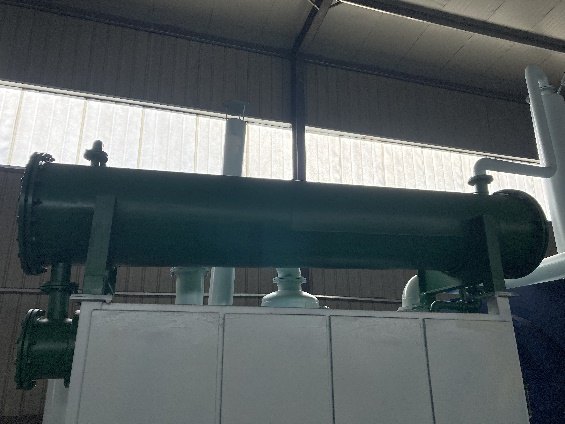

Condenser

Distillation tower

Oil tank

Control cabinet

Flue condenser

Hydroseal

Dedusting scrubber

Maintenance hole

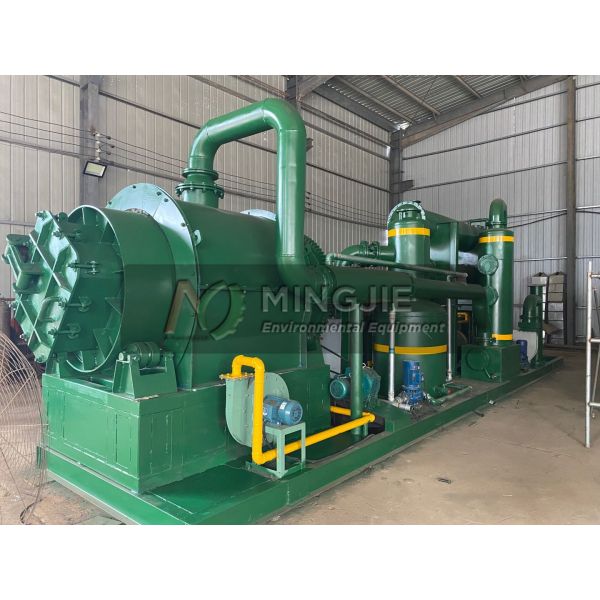

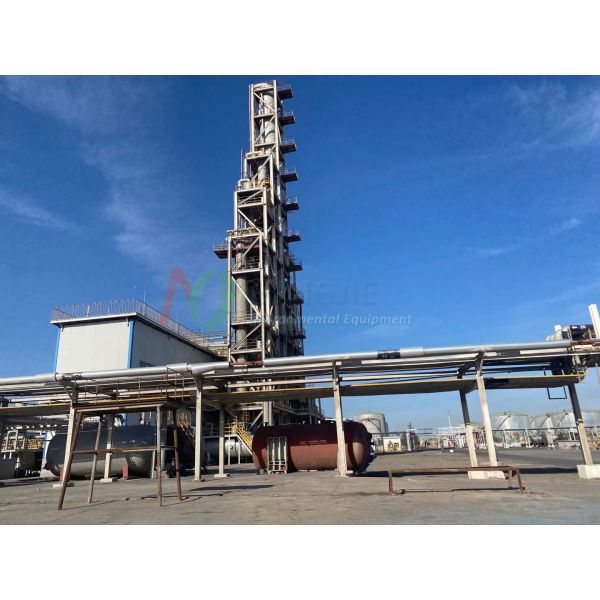

SUCCESSFUL PROJECT

Project in China

Project in Iraq

Project in Korea

Project in Peru

Project in Thailand

Project in Canada

OUR ADVANTAGES

CLIENTS FROM WORLD

CERTIFICATE

FAQ

Q1: How can we use the distilled diesel from waste tires or plastics?
A1: 1. Can be used for heating , 2. Can be used in the low speed and heavy duty engines, like boat, diesel generator.

Q2: What can we do with the heavy oil from distillation machine?

A2: 1. Can be sold as asphalt , if there is a market at your local, 2. Can be put back into the pyrolysis machine and refine it again.

Q3: Can we produce base oil from the distillation plant?

A3: Yes, we can produce base oil from the distillation plant, but the raw materials must be used engine oil, can not be pyro-oil.

Q4: Warranty. What are the over guarantees?

A4: All the plants from Mingjie has a 12 months guarantee since the act of acceptance is signed, during the warranty period, all the problems cause by quality will be resolved by Mingjie at its own cost, which will be indicated in the contract.
