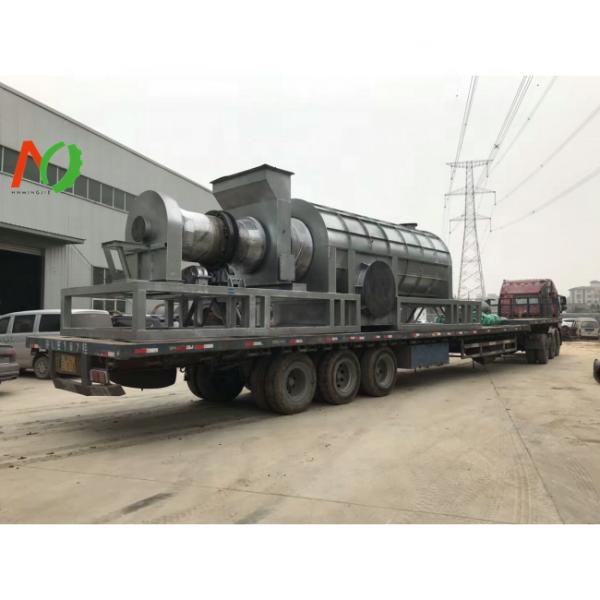

Multifunctional Bamboo Charcoal Making Machine with Horizontal Carbonization Furnace

Name: Multifunctional Bamboo Charcoal Making Machine with Horizontal Carbonization Furnace
Brand: Mingjie
Price: 90 USD

Wholesale Multifunctional Bamboo Charcoal Making Machine with Horizontal Carbonization Furnace from china suppliers

Place of Origin : Henan, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Brand Name : Mingjie

Dimension(L*W*H) : 7100*2250*2400mm

Voltage : Customize

Power : 18.9kw/h

Warranty : 1 Year

Key Selling Points : Multifunctional

Applicable Industries : Manufacturing Plant, Farms, Construction works , Energy & Mining

Showroom Location : Turkey, Japan, Tanzania

Weight (KG) : 12000

Raw material : Biomass Wastes

Product name : Biomass Carbonization Furnace

Final product : Charcoal Bio-char

Function : Wood Biomass Charcoal Making

Heating source : Energy Recycle

Capacity : 100kg/h

Color : Customer Required

Fuel : Biomass Gas&Electricity

Application material : Waste

Carboniztion type : Continuous Air Flow Pyrolysis

Packaging Details : 1 set of 40 HC CONTAINER per bamboo charcoal machine bamboo charcoal making machine horizontal carbonization furnace

Port : Qingdao

Supply Ability : 10 Set/Sets per Month

Price : $90,000.00/sets 1-1 sets

MOQ : 1 unit

Contact Now

I. General Flow chart

II. Parameter of the machine

Model	MJT-100 Carbonization Plant
Working method	Continuous working
Input capacity	100kg/h
Input material size	<= 20mm
Input material moisture	<=15%
Reactor Structure	Dual layer
Reactor Material	304 Stainless steel
Heating method	Indirect heating
Fuel for start	Diesel, Natural Gas, LPG etc
Total power	37.2KW
Control	PLC control
Input out ratio	3:1
Fuel consumption	30-50 Liter oil for initial heating, after syngas produced, 0-20Liter
Labor required	4-6 workers for 24hours working in three shifts
Land required	L10W3H6

III. The Reaction Process

1. Preheating the reactor for 2 hours, after temperature reach to 150 degree, the feeding could be started

2. Keep feeding the material into inner cylinder of reactor for further dehydrating and preheating.

Material will moved to outside cylinder of reactor by deflector for completing the carbonization.

3. Material release syngas during the carbonization process, and the syngas will be firstly removed the dust by the cyclone dust collector, and then pass through the condensers to separate the wood vinegar and tar. There is non-condensable syngas which mostly will be recycled as fuel for heating the reactor, and small part of extra syngas will be burned out directly for releasing the pressure of reactor.

4. Material remains in reactor for 15-25mins for becoming the biochar, then the biochar could be discharged out of reactor by water cooling discharger screw, the water jacket of discharger can cool down the biochar temperature for ensure the safety.

5. The flue gas from fuel burning will go through the spray tower for cleaning by there filters which are the water washing, ceramic ring adsorption and water spray. After that the flue gas can be discharged into the air.

6. The water pool keeps to provide the cool water for condensers, water cooling discharger screws and spray tower. The cooling tower is used for cooling down the hot water from this device to ensure the cooling efficiency. The water won’t touch the material, which is circulating.

IV. Final Product And Application

Name


Application

Bicchar/

Charcoal

Multifunctional Bamboo Charcoal Making Machine with Horizontal Carbonization Furnace

Used as soil conditioner, carbon sequestration, improve the quality of soil

Used as fuel for industry heating and cooling or BBQ

Can be reprocessed into activated carbon, widely used in the smelting, chemical fields.

Syngas

Multifunctional Bamboo Charcoal Making Machine with Horizontal Carbonization Furnace

Can be recycled to heat the carbonization host.

By this way, you can reduce a lot of fuel costs.

v. Project display

Multifunctional Bamboo Charcoal Making Machine with Horizontal Carbonization Furnace Images
